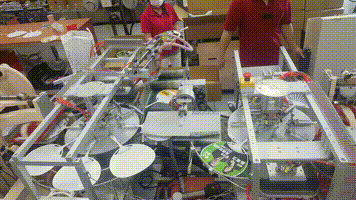

CL-1066 Single-Film Automatic Glue Labeling Machine (Hand Fan Labeling)


Applicable scope:

Foods, chemicals, pharmaceutical products, cosmetics, electronics, hardwares, auto parts, stationery items, batteries, cartons, different kinds of oil, and packaging of various specifications.

Features:
1.Vacuum label suction to control label feeding and accurate labeling.
2.Proper control on glue film thickness to avoid peeling and glue omission
  (available in optional water glue and hot melt adhesive); labeling accuracy is
  ±0.5mm.
3.Applicable with labels in lithographic paper, coated paper, lacquered paper or
  foil paper.
4.Can be connected with a conveyor belt on the production line.
5.Labeling cost reduction.
6.Universal label holder to accommodate different label sizes and shapes, and five-
  minute quick adjustment.
7.Normal labeling speed: 50 bottles/min; max. labeling speed: 70 bottles/min.
8.Optional segmentation disc and automatic conveyor belt feeder are available.

Applicable products






Machine dimensions 1000 x 700 x 1600mm (L x W x H)
Machine weight 450 kg
Maximum labeling size (standard type) 180 x 160mm (L x W) : (widen type) 280 x 160mm (L x W)
Power rating 3-phase 220V 50/60 HZ
Dry compressed air 6~8kg/cm2
