Applicable scope:

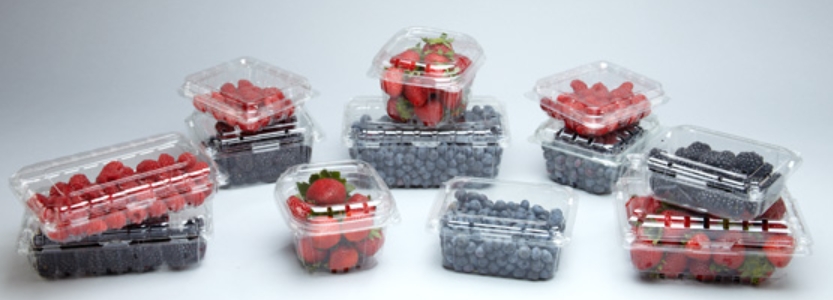

Continuous labeling of preformed fruit clamshell  、Egg clamshell and blister cards.

Features:
1.Quality and aesthetic machine design in stainless steel and anodized aluminum alloy
  materials.
2.Proface color HMI touch-screen operation.
3.Label and products driving in Japanese-made Yaskawa servo motor.
4.Japanese-made Mitsubishi PLC and Keyence photo sensors are used.
5.One-time labeling of matrix-arranged blister cards to significantly increase the
  productivity.
6.Individual controls on six headers and individual adjusted hardware construction
  to favor labeling on precise position of blister cards.
7.Labeling precision of ±2 mm.
8.Labeling speed: 30m/min.
9.Labeling position, height and angle can be adjusted with a hand wheel.
10.Automatic alarm function in the event of no label stock without stopping the production
   line.
11.Electric eye detection of label omission, and automatic alarm function without stopping
   the production line.

Applications：
