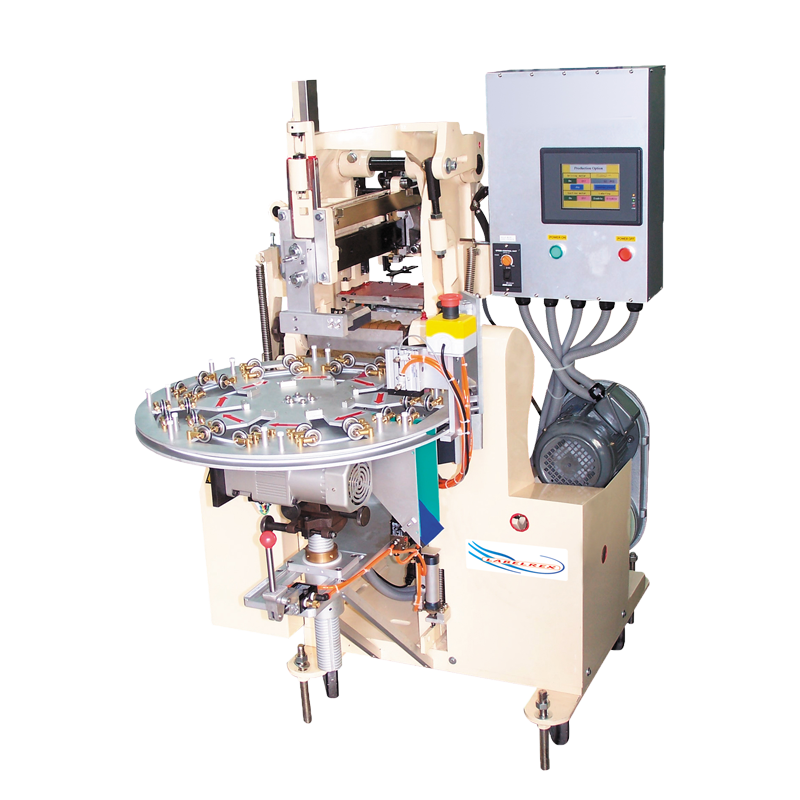

CL-1068 Widen Type Single-Film Automatic Gluing-Labeling Machine(Hand Fan)

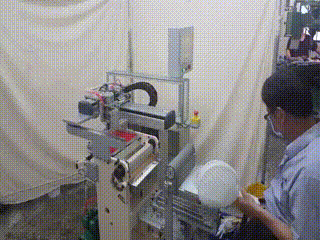

CL-1068 GLUE LABELING
Applicable scope:
Foods, chemicals, pharmaceutical products, cosmetics, electronics, hardwares, auto parts, stationery items, batteries, cartons, different kinds of oil, hand fan, and packaging of various specifications.


Features:
1.The machine is made up of stainless steel、steel and anodized aluminum alloy.
2.Vacuum label suction to control label feeding and accurate labeling.
3.Proper control on glue film thickness to avoid peeling and glue omission
  (available in optional water glue and hot melt adhesive); labeling accuracy is ±0.5mm.
4.Applicable with labels in lithographic paper, coated paper, lacquered paper of foil paper.
5.Can be connected with a conveyor belt on the production line.
6.Labeling cost reduction.

7. The X and Y labeling manipulators are equipped with Japan-made high-precision Keyence sensor motor.
8.Universal label holder to accommodate different label sizes and shapes, and five-minute quick adjustment.
9.Labeling speed: 16~30 pcs/min, continuously variable transmission.
10.Optional segmentation disc and automatic conveyor belt feeder are available.


Applicable products :

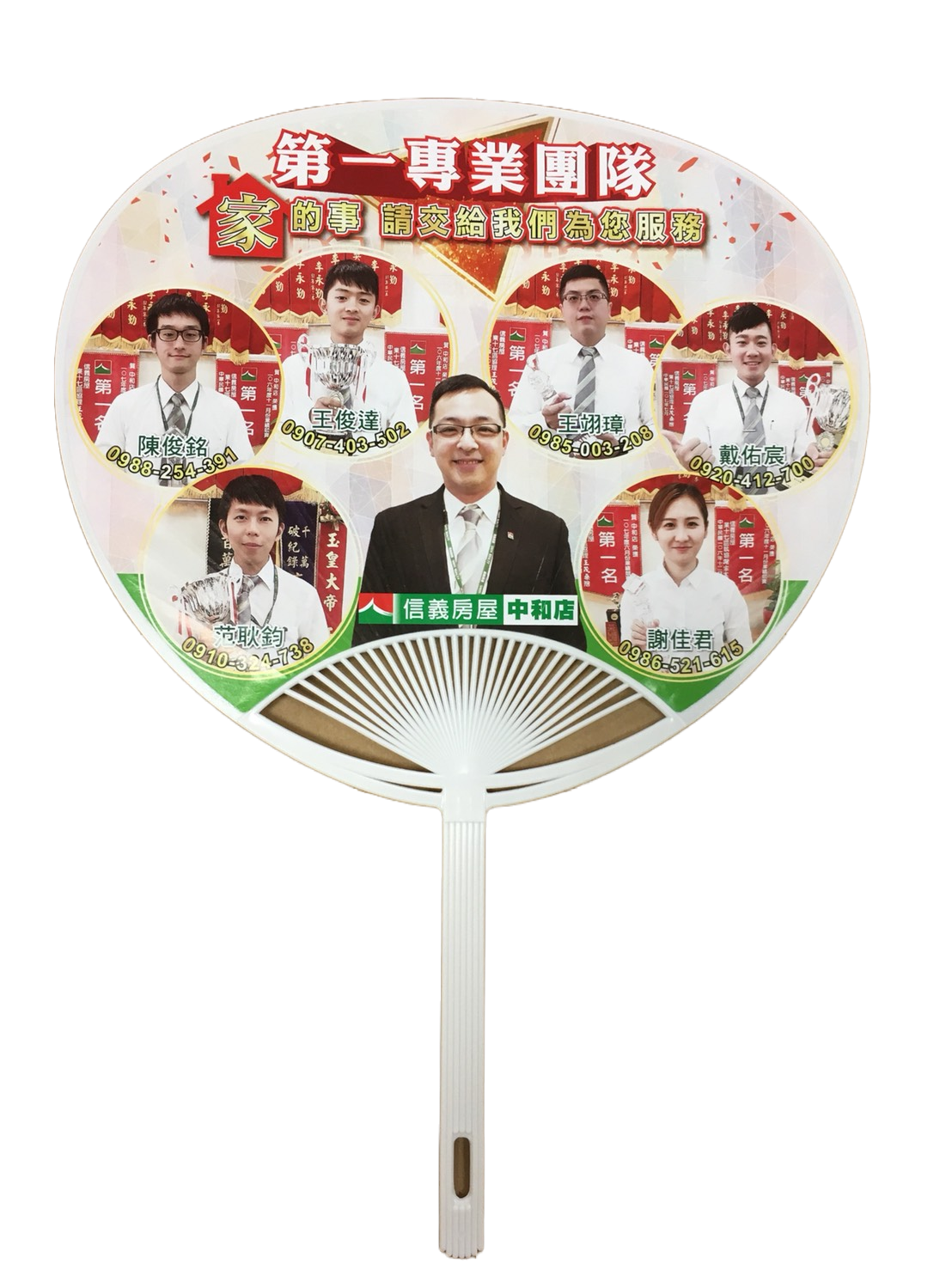

hand fan




Machine dimensions 1100 x 1500 x 1500 mm (L x W x H)
Machine weight 700 kg
Maximum labeling size (standard type) 180 x 160mm (L x W):(widen type) 280 x 160mm (L x W)
Power rating 3-phase220V 50 / 60 HZ
Dry compressed air 6~8kg//cm2
